Terminal Warehouse
New York, NY
GMS provided a range of structural engineering services to design and support elements on the facade and the interior of the 1.2 million sq. ft. Terminal Warehouse.

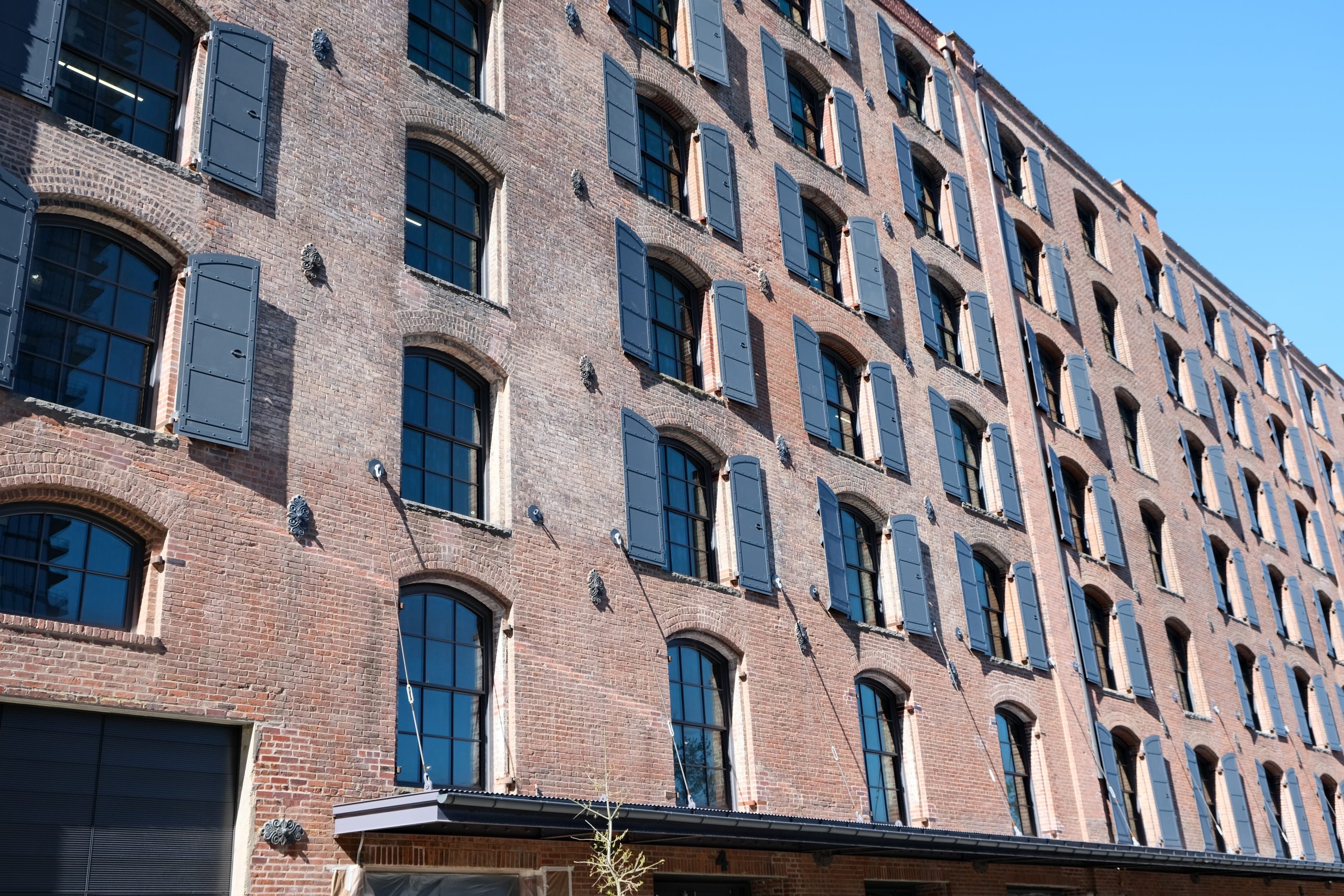

The extent of GMS’s exterior work consisted of the section design and anchorage of ornamental metal shutters, the archway channels and marquee gutters. The ornamental shutters are intended to match the buildings original cast iron shutters. All external components required an in-depth wind and snow analysis to ensure the durability of the elements (where applicable) and their support.

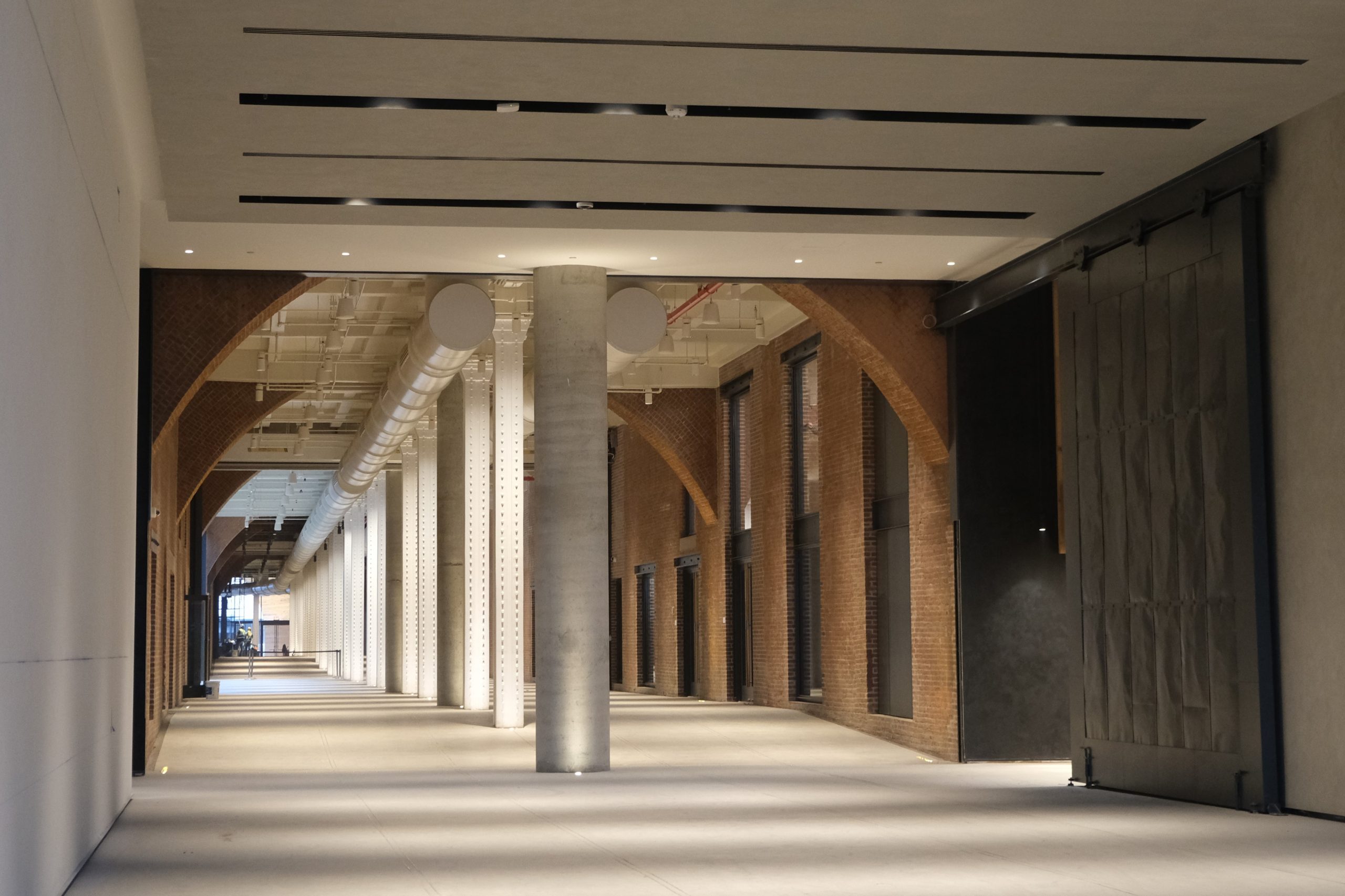

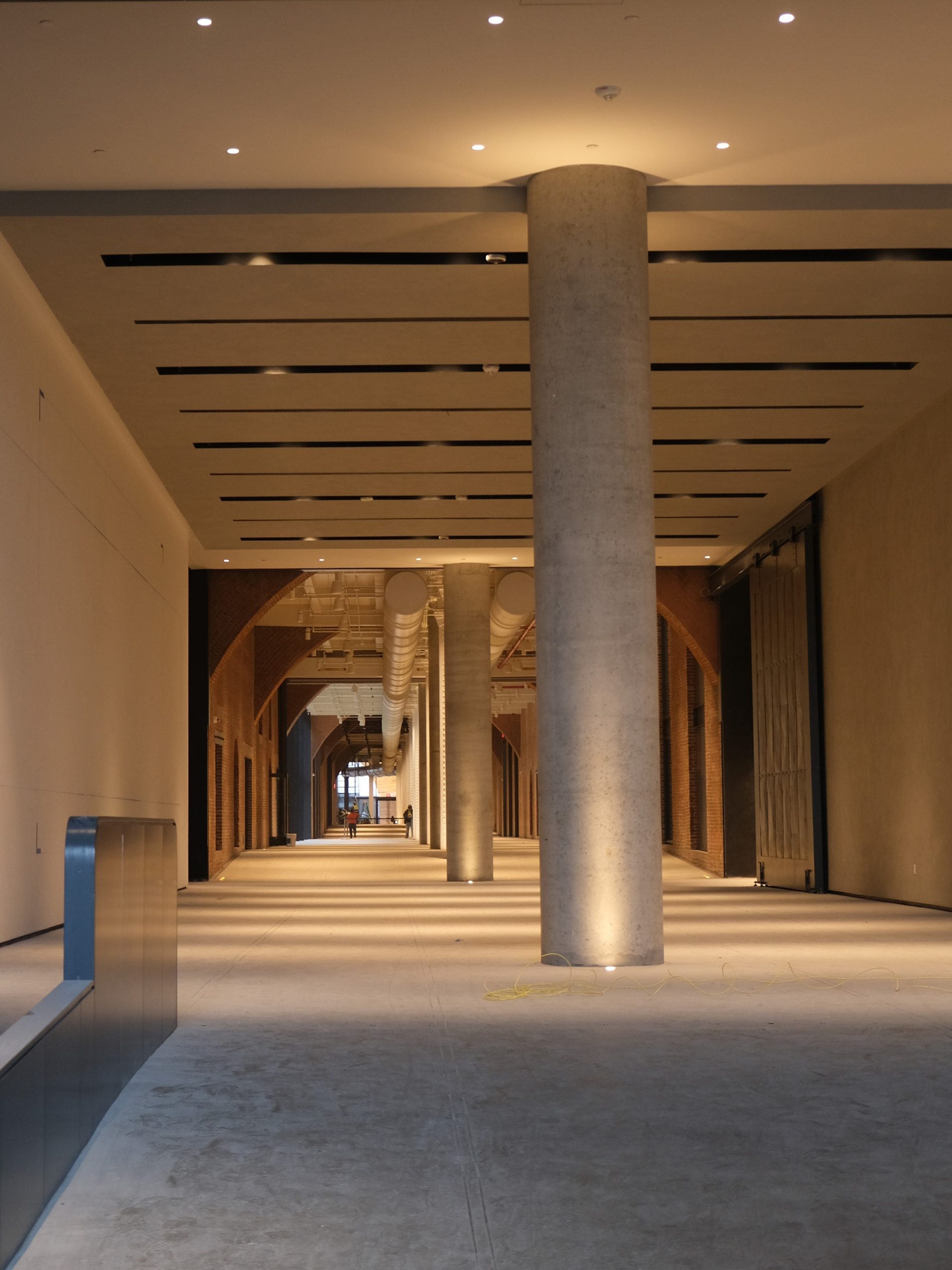

The engineering for the interior spaces included supporting both structural and nonstructural components. The structural elements include the support of the oversized sliding doors, multi-story staircases, and multiple handrails.
GMS investigated the effects of the 1-ton door sliding on a steel wide flange as a track while limiting the deflection to guarantee smooth operation. These doors attach to the existing structure. The supports are concealed within architectural components, while the top track is exposed to give an industrial look to the system.
The custom staircase was designed using a vibration analysis and designed to be supported by the existing structure.
Nonstructural items designed by GMS include the support of various cladding throughout the interior.
Architect: COOKFOX Architects, DPC
Client: 5 Elements West
